A UNIVERSAL PUSH BUTTON STARTER SWITCH - RED LIGHT ILLUMINATED . SUITABLE FOR A RANGE OF CLASSIC CARS / SPORTS CARS / MACHINARY RUNNING 12V SYSTEMS.

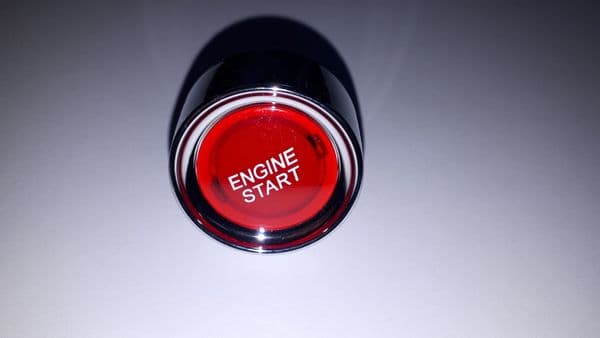

Single pole momentary function with red LED illumination and ENGINE START printed on the button. The bezel is chromed plastic giving a quality appearance. 22mm round panel cut out and supplied with a rear nut for easy dash panel mounting.

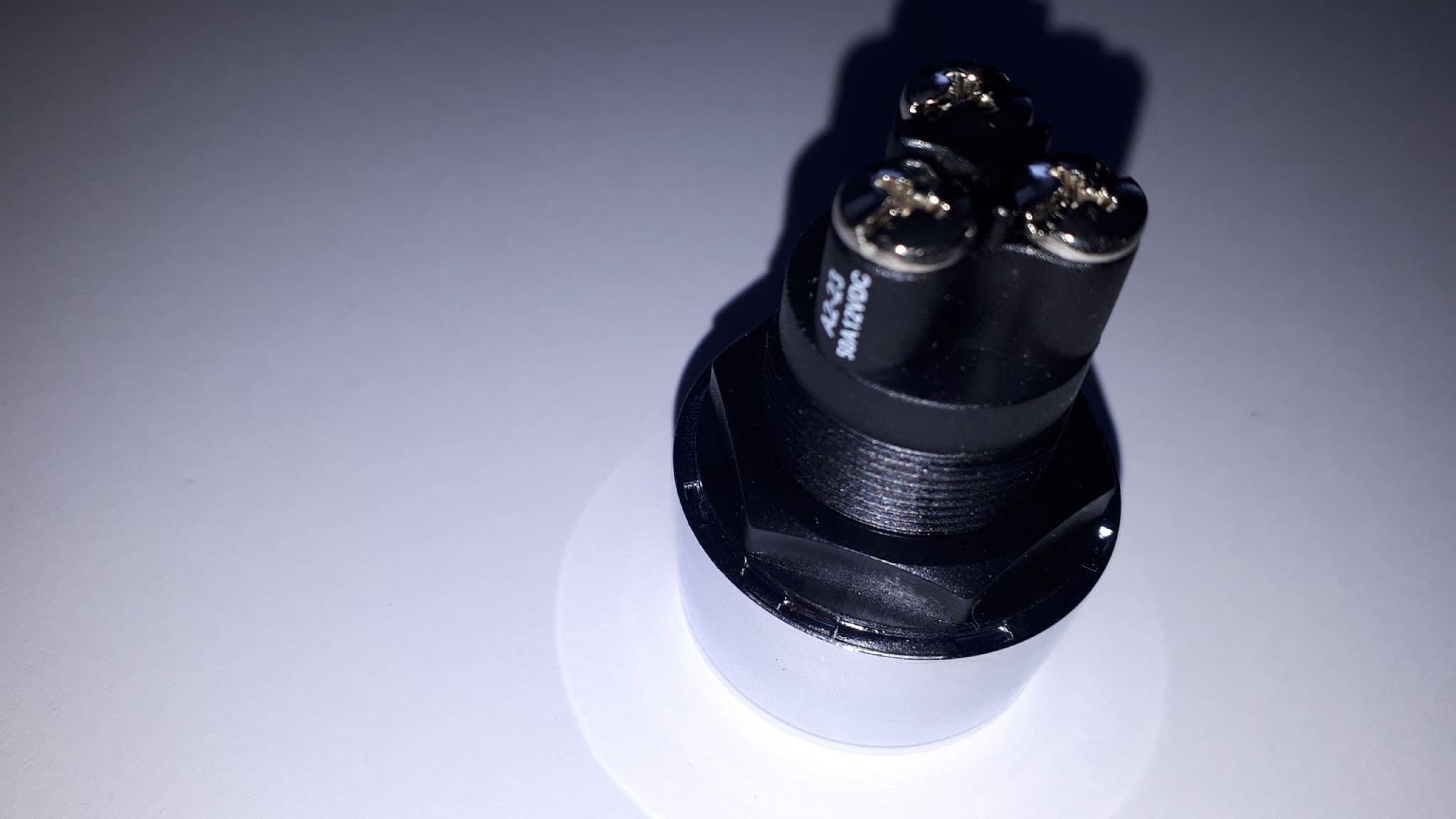

WIRING INSTRUCTIONS
Pin 1 Positive switched output to starter circuit
Pin 2 Connect to Positive
Pin 3 Connect to Negative
Overall Size : 46mm (L) x 34mm (Diameter)
Overall Size Below Panel : 29.5mm (L) x 34mm (Diameter)Suitable for 12V to 32V installations and perfect for all marine and automotive applications.
